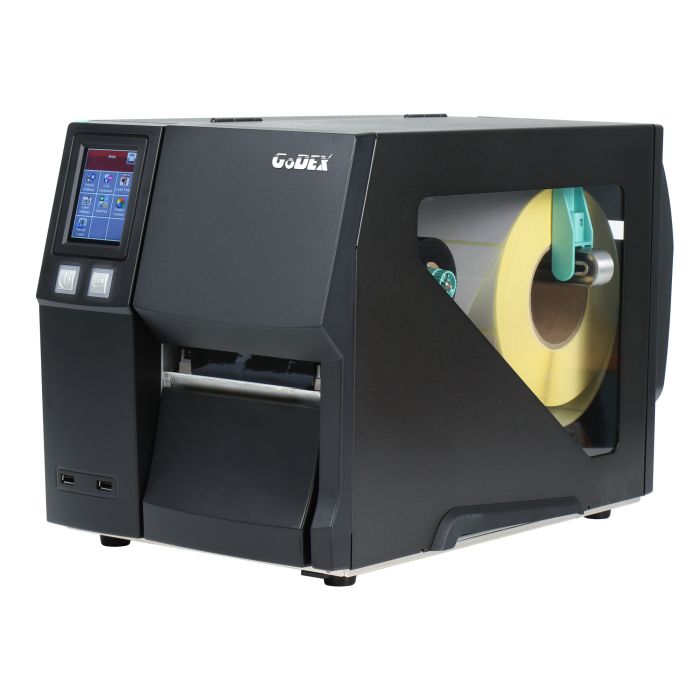

GoDEX printer ZX1200i+ - tear-off edge

What are the key features of industrial label printer such as the ZX1200i+?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes.

Which printing methods does the printer ZX1200IPLUS support?

The printer ZX1200i+ with item number ZX1200IPLUS supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 450 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 110 mm can be used.

Which roll labels are compatible with the label printer ZX1200i+?

All roll labels with a core diameter of 1.5 inch (38.1 mm), 3 inch (76.2 mm) and a maximum outer roll diameter of 203.2 mm are compatible with the label printer ZX1200i+. Labels with outside or inside wound are also suitable.

Which label formats can the ZX1200i+ print?

The ZX1200i+ can process roll labels from 25.4 mm to 118 mm in width. The maximum print width is 108 mm.

What print quality does the ZX1200i+ offer?

The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.

Which interfaces does the industrial label printer ZX1200i+ support?

The industrial label printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the printer ZX1200i+ offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer ZX1200i+?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterwards, add the device in the Windows settings.
