High maximum print width of 168 for large format labels
Intelligent technology and increased performance
Enhanced user-friendliness thanks to color LCD display
Compatible with device management software and Link OS applications

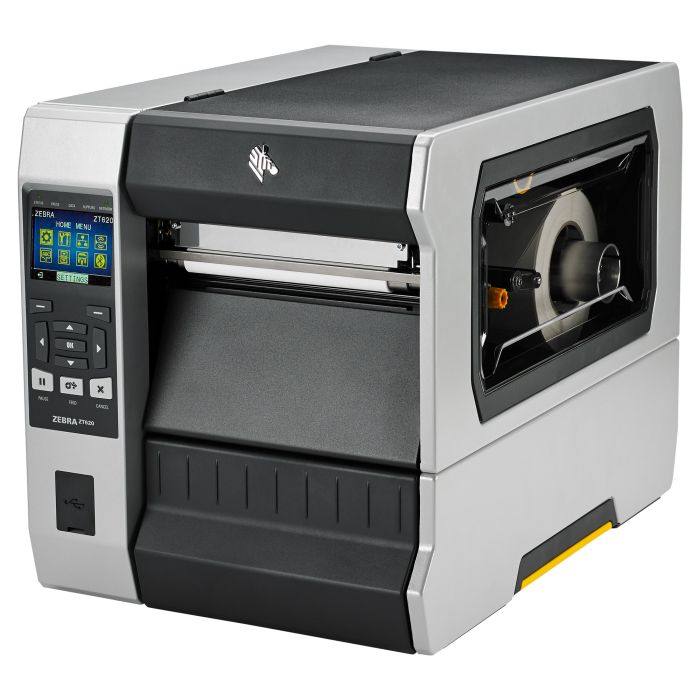

The next generation of industrial printing - the ZT620 from Zebra
As successor of the 140Xi4 label printer, the ZT620 has a number of innovative features. In addition to the tried and tested design, which protects the printer from dust, dirt and moisture, great importance was attached to user-friendliness and connectivity. The device offers the standard connectivity options, Bluetooth, USB, and Gigabit Ethernet. In addition, a parallel interface, 802.11a/c, an applicator port, IPv6 and Bluetooth LE are available as options. The color LCD display ensures easy operation by the user - even in case of malfunctions or disturbances.
More Information
More Information
manufacturer
Zebra
model
ZT620
productdescription
Etikettendrucker (Industrie)
type
model with cutter
display
LCD display
used device
nein
interfaces
Bluetooth, LAN, USB
resolution (dpi)
300
outer diameter label roll (mm)
203
roll width max. (mm)
178
roll width min. (mm)
51
printing method
direct thermal, thermal transfer
core diameter label roll
3 inch (76.2 mm)
label winding
outside wound
ribbon winding
Außenwicklung
ribbon length max. (m)
450
ribbon width max. (mm)
174
printwidth max. (mm)
168
print speed max. (mm/s)
203
scope of delivery
Printer(s), EU power cord, US power cord, ribbon core, instruction manual, free telephone support, software
operating system
We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS.
Other improper work or modifications to the appliance can also jeopardize operational safety
The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.).
The device is designed for power grids with an alternating voltage of 100 V to 240 V. It may only be connected to sockets with protective earth contact
Only connect the appliance to devices that carry a safety extra-low voltage
The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling
The maximum emission sound pressure level LpA is below 70 dB(A)
Do not operate the appliance in the vicinity of high-voltage power lines.
Do not operate the appliance in a potentially explosive atmosphere.
Do not remove any warning stickers, otherwise dangers cannot be recognized
Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians
Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid
Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work
Improper tampering with electronic assemblies and their software can cause faults
Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections
If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts
