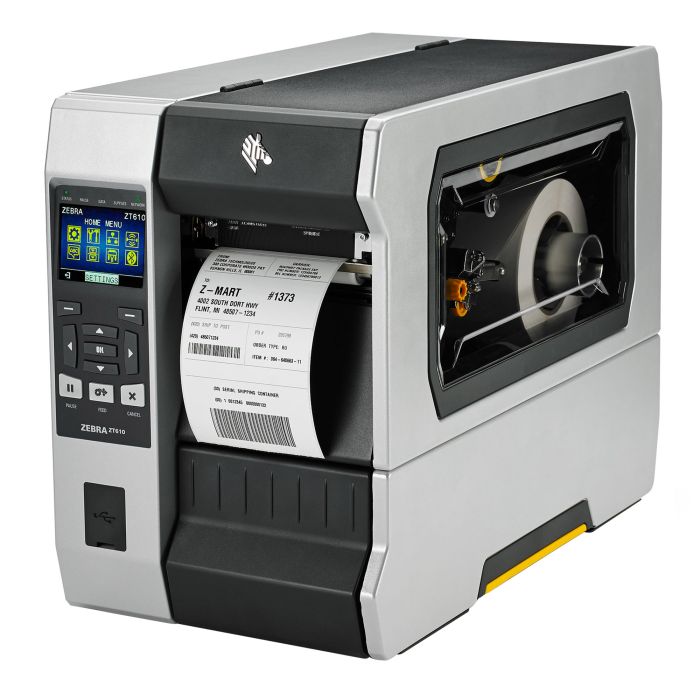

Zebra printer ZT610 - model with dispenser and internal label rewinder

What are the key features of industrial label printer such as the ZT610?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes. The ZT610 label printer has proven to be a cost-effective solution for printing shipping labels.

Which printing methods does the printer ZT61042-T2E0100Z support?

The printer ZT610 with item number ZT61042-T2E0100Z supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 450 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 110 mm can be used.

Which roll labels are compatible with the label printer ZT610?

All roll labels with a core diameter of 3 inch (76.2 mm) and a maximum outer roll diameter of 203 mm are compatible with the label printer ZT610. Labels with outside wound are also suitable.

Which label formats can the ZT610 print?

The ZT610 can process roll labels from 20 mm to 114 mm in width. The maximum print width is 104 mm. It is particularly well-suited for printing on standard mailing sizes such as 103 x 199 mm, 102 x 152 mm, and 100 x 150 mm, as well as smaller label sizes.

What print quality does the ZT610 offer?

The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.

Which interfaces does the industrial label printer ZT610 support?

The industrial label printer supports the following interfaces: Bluetooth, LAN, USB, USB-Host, serial (RS-232).

What features does the printer ZT610 offer?

The base unit features a dispenser and an internal rewinder. Depending on the application, the printer can be used in two operating modes:

• Dispensing mode: After printing, the labels are automatically separated from the backing material and presented for removal. The empty backing material is wound up internally. The printer pauses after each label until the label has been removed.
• Rewind mode: The labels are not dispensed. Instead, the entire roll of printed labels including the backing material is wound up internally. Printing takes place continuously, without interruption between individual labels.

How do I install the printer ZT610?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver has been installed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
