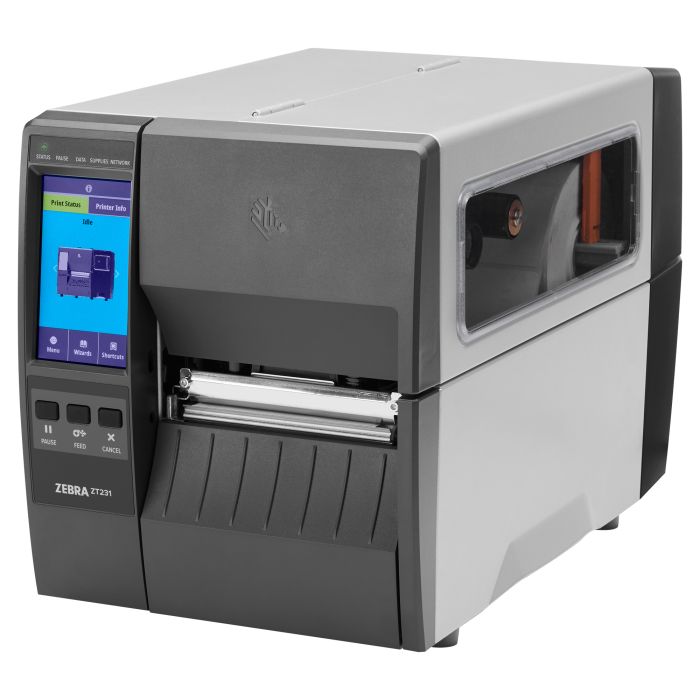

Zebra printer ZT231 - cutter

What are the key features of industrial label printer such as the ZT231?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes.

Which printing methods does the printer ZT23143-T2E000FZ support?

The printer ZT231 with item number ZT23143-T2E000FZ supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 450 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 110 mm can be used.

Which roll labels are compatible with the label printer ZT231?

All roll labels with a core diameter of 1 inch (25.4 mm), 3 inches (76.2 mm) and a maximum outer roll diameter of 203 mm are compatible with the label printer ZT231. Labels with outside wound are also suitable.

Which label formats can the ZT231 print?

The ZT231 can process roll labels from 19.4 mm to 114 mm in width. The maximum print width is 104 mm.

What print quality does the ZT231 offer?

The printhead has a resolution of 300 dpi. This resolution is suitable for printing text, fine barcodes, or graphics. It is frequently used for product identification or nameplate labels.

Which interfaces does the industrial label printer ZT231 support?

The industrial label printer supports the following interfaces: Bluetooth, LAN, USB, USB-Host, serial (RS-232).

What features does the printer ZT231 offer?

The base unit is equipped with a cutter. The labels are automatically cut off after printing.

How do I install the printer ZT231?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver has been installed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
