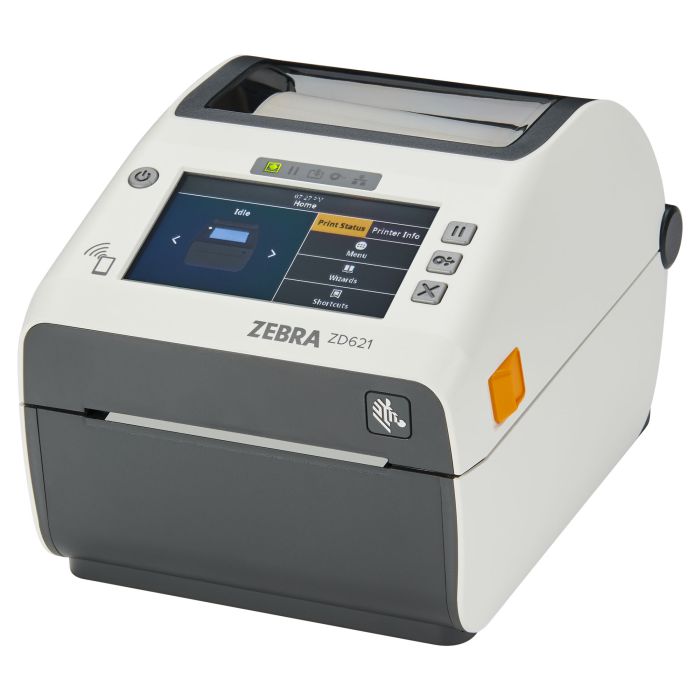

Zebra printer ZD621-HC - tear-off edge
Zebra ZD621-HC, 203 dpi desktop printer, Color LCD touchscreen, tear-off edge (ZD6AH42-D0EF00EZ), successor to ZD620-HC (ZD62H42-D0EF00EZ)
- printing method:
- direct thermal
- max. print width:
- 104 mm
- max. print speed:
- 203 mm/s
- interfaces:
- Bluetooth (BLE), LAN, USB, USB-Host, serial (RS-232)
Details
What are the key features of desktop printer such as the ZD621-HC?
Desktop printers are suitable for work environments with limited space. Thanks to their compact design, they can be easily integrated into shipping, warehouse, production, or office areas, even where there is little available surface space. Furthermore, they are characterized by ease of use, versatility, and cost-effectiveness.
Which printing methods does the printer ZD6AH42-D0EF00EZ support?
The printer ZD621-HC with item number ZD6AH42-D0EF00EZ supports the direct thermal printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
Which roll labels are compatible with the label printer ZD621-HC?
All roll labels with a core diameter of 0.5 inch (12.7 mm), 1 inch (25.4 mm) and a maximum outer roll diameter of 127 mm are compatible with the label printer ZD621-HC. Labels with outside wound are also suitable.
Which label formats can the ZD621-HC print?
The ZD621-HC can process roll labels from 15 mm to 108 mm in width. The maximum print width is 104 mm.
What print quality does the ZD621-HC offer?
The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.
Which interfaces does the desktop printer ZD621-HC support?
The desktop printer supports the following interfaces: Bluetooth (BLE), LAN, USB, USB-Host, serial (RS-232).
What features does the printer ZD621-HC offer?
The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.
How do I install the printer ZD621-HC?
To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver has been installed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
We recommend using this printer with Windows. Please note that we do not provide support for macOS.More Information
| manufacturer | Zebra |
|---|---|
| model | ZD621-HC |
| productdescription | desktop printer |
| type | model with tear-off edge |
| display | LCD display |
| used device | nein |
| interfaces | Bluetooth (BLE), serial (RS-232), LAN, USB, USB-Host |
| resolution (dpi) | 203 |
| outer diameter label roll (mm) | 127 |
| color | white |
| roll width max. (mm) | 108 |
| roll width min. (mm) | 15 |
| printing method | direct thermal |
| core diameter label roll | 0,5 Zoll (12,7 mm), 1 Zoll (25,4 mm) |
| label roll winding | Außenwicklung |
| printwidth max. (mm) | 104 |
| print speed max. (mm/s) | 203 |
| scope of delivery | EU-Netzkabel, Kurzanleitung, UK-Netzkabel, Printer(s), power supply, USB connection cable, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4059312134428 |
