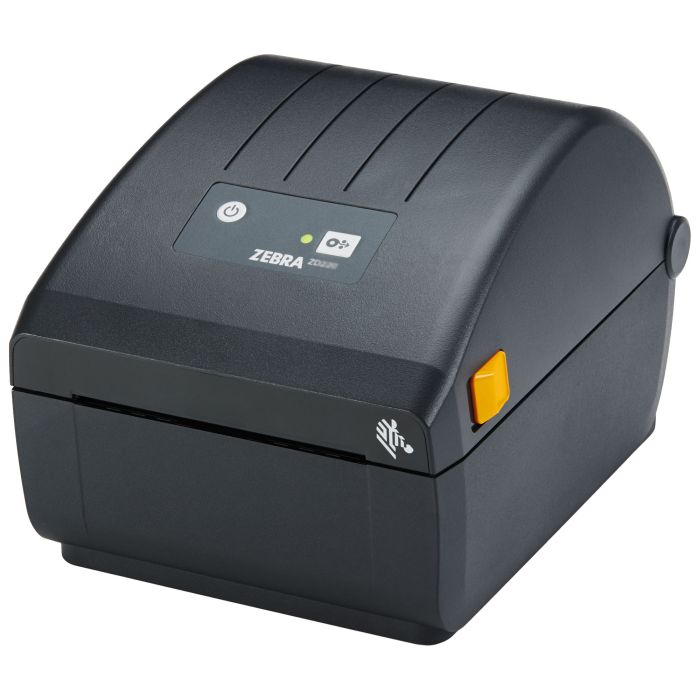

Zebra printer ZD230d - tear-off edge

What are the key features of desktop printer such as the ZD230d?

Desktop printers are suitable for work environments with limited space. Thanks to their compact design, they can be easily integrated into shipping, warehouse, production, or office areas, even where there is little available surface space. Furthermore, they are characterized by ease of use, versatility, and cost-effectiveness.

Which printing methods does the printer ZD23042-D0EC00EZ support?

The printer ZD230d with item number ZD23042-D0EC00EZ supports the direct thermal printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.

Which roll labels are compatible with the label printer ZD230d?

All roll labels with a core diameter of 0.5 inch (12.7 mm), 1 inch (25.4 mm) and a maximum outer roll diameter of 127 mm are compatible with the label printer ZD230d. Labels with outside wound are also suitable.

Which label formats can the ZD230d print?

The ZD230d can process roll labels from 25.4 mm to 112 mm in width. The maximum print width is 104 mm.

What print quality does the ZD230d offer?

The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.

Which interfaces does the desktop printer ZD230d support?

The desktop printer supports the following interfaces: LAN, USB.

What features does the printer ZD230d offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer ZD230d?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver has been installed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
