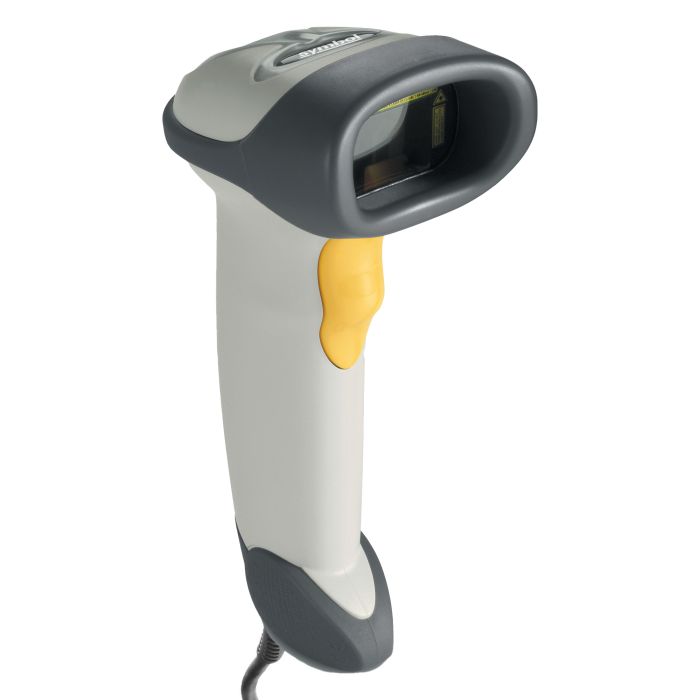

Zebra LS2208 barcodescanner

How can the barcode scanner be connected to the system?

The connection to the system is made via cable. This enables stable and reliable data transmission without radio interruptions and is suitable for use at stationary workstations.

Which interfaces does the Zebra LS2208 scanner support?

The Zebra LS2208 barcode scanner supports the following interfaces: KBW, USB, serial (RS-232), seriell (RS-485).

What is included in the scope of delivery of the Zebra LS2208?

The scope of delivery of the Zebra LS2208 includes: cable (USB), scanner.

Which barcodes can be scanned with the Zebra LS2208 scanner?

The Zebra LS2208 captures 1D barcodes.

What does degree of protection IP30 mean?

The IP30 protection rating means that the barcode scanner is protected against solid foreign objects with a diameter of 2.5 mm or more and offers no protection against water.

What is the scanner's range when reading barcodes?

The scanner recognizes barcodes from a distance of up to 0.64 m.

Up to what height is the scanner drop-proof?

The scanner is designed to withstand drops from up to 1.5 m onto concrete.

How is a successful barcode reading indicated?

After reading the barcode, confirmation is given visual, acoustic.

How can I set up my Zebra barcode scanner?

You can set up your barcode scanner on your PC using the Zebra 123scan-software. The Windows utility supports quick and easy configuration and offers the option to customize advanced settings such as interfaces, barcode fonts, or signal options.
