Zebra LI3678-ER barcodescanner

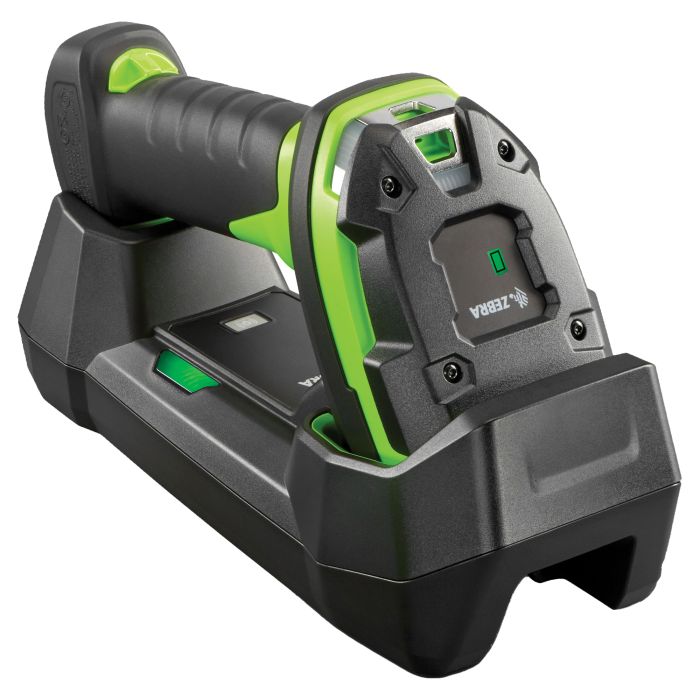

Zebra LI3678-ER (Extended Range), hand scanner, black-green (LI3678-ER3U42A0S1W)
- scan options:
- 1D
- connection:
- bluetooth
- interfaces:
- Industrial Ethernet, KBW, USB, serial (RS-232)
- scope of delivery:
- Netzkabel (EU), cable (USB), charging unit, scanner
Details
How can the barcode scanner be connected to the system?
The connection to the system is made via bluetooth. This makes the scanner mobile and suitable for workplaces where freedom of movement is required. In addition, the scanner can be connected to the system via the charging and transfer station.
What is included in the scope of delivery of the Zebra LI3678-ER?
The Zebra LI3678-ER comes with: Netzkabel (EU), cable (USB), charging unit, scanner.
Which barcodes can be scanned with the Zebra LI3678-ER scanner?
The Zebra LI3678-ER captures 1D.
What does degree of protection IP65/IP68 mean?
The IP65 protection rating means that the barcode scanner is completely dustproof and offers protection against water jets from any angle. IP68 offers additional protection against permanent submersion (details according to manufacturer's specifications).
How far away from the base unit can the barcode scanner be used?
The scanner can be used up to 100 m away from the base unit.
What is the scanner's range when reading barcodes?
The scanner recognizes barcodes from a distance of up to 17.1 m.
Up to what height is the scanner drop-proof?
The scanner is designed to withstand drops from heights of up to 3 m onto concrete.
What is the battery capacity of the barcode scanner?
The battery capacity is 3100 mAh, enabling approximately 100000 scans per charge. The exact number depends on factors such as scanning frequency, activated additional functions (e.g., Bluetooth), and environmental conditions such as temperature.
How is a successful barcode scan indicated?
After the barcode is scanned, confirmation is provided visual, acoustic, vibrating.
How can I set up my Zebra barcode scanner?
You can set up your barcode scanner on your PC using the Zebra 123scan-software. The Windows utility supports quick and easy configuration and offers the option to customize advanced settings such as interfaces, barcode fonts, or signal options.
More Information
| scanner series | LI3600-ER |
|---|---|
| manufacturer | Zebra |
| model | LI3678-ER |
| productdescription | Handscanner |
| scan options | 1D |
| scanning technology | Linear Imager |
| connection | Bluetooth |
| Protection class | IP65/IP68 |
| interfaces | Industrielles Ethernet, serial (RS-232), KBW, USB |
| decoding feedback | visuell, akustisch, vibrierend |
| radio range up to (m) | 100 |
| reading range up to (m) | 17,1 |
| scans per charge up to | 100000 |
| drop resistance on concrete up to (m) | 3 |
| battery capacity (mAh) | 3100 |
| color | schwarz-grün |
| scope of delivery | cable (USB), Lade-/ Übertragungsstation, Netzkabel (EU), Scanner |
| GTIN | 4059312157120 |
