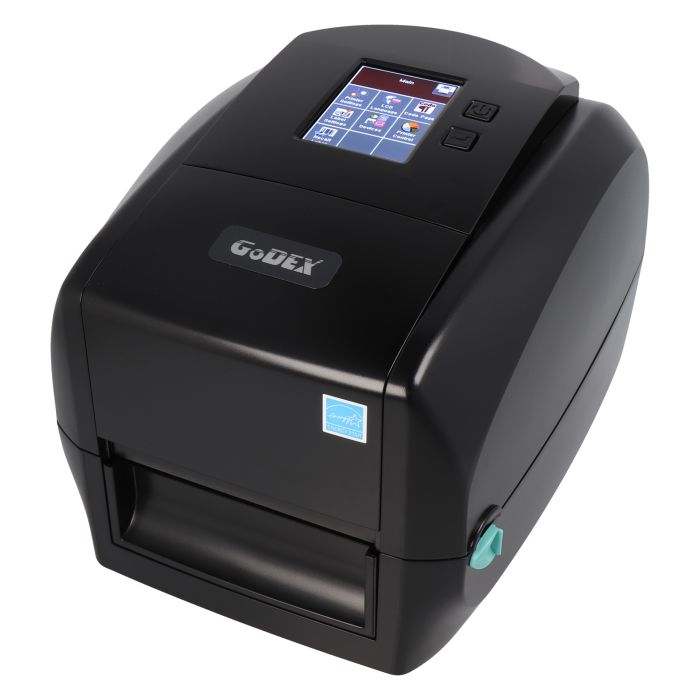

GoDEX printer RT863i Pro - tear-off edge

What are the key features of desktop printer such as the RT863i Pro?

Desktop printers are suitable for work environments with limited space. Thanks to their compact design, they can be easily integrated into shipping, warehouse, production, or office areas, even where there is little available surface space. Furthermore, they are characterized by ease of use, versatility, and cost-effectiveness.

Which printing methods does the printer GP-RT863IPRO support?

The printer RT863i Pro with item number GP-RT863IPRO supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 300 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 110 mm can be used.

Which roll labels are compatible with the label printer RT863i Pro?

All roll labels with a core diameter of 1 inch (25.4 mm), 1.5 inch (38.1 mm) and a maximum outer roll diameter of 127 mm are compatible with the label printer RT863i Pro. Labels with outside or inside wound are also suitable.

Which label formats can the RT863i Pro print?

The RT863i Pro can process roll labels from 20 mm to 118 mm in width. The maximum print width is 105.7 mm.

What print quality does the RT863i Pro offer?

The printhead has a resolution of 600 dpi. This resolution is suitable for printing fine text and high-resolution barcodes. It is particularly well-suited for small labels and applications requiring high printing precision, such as the marking of printed circuit boards.

Which interfaces does the desktop printer RT863i Pro support?

The desktop printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the printer RT863i Pro offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer RT863i Pro?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterwards, add the device in the Windows settings.
