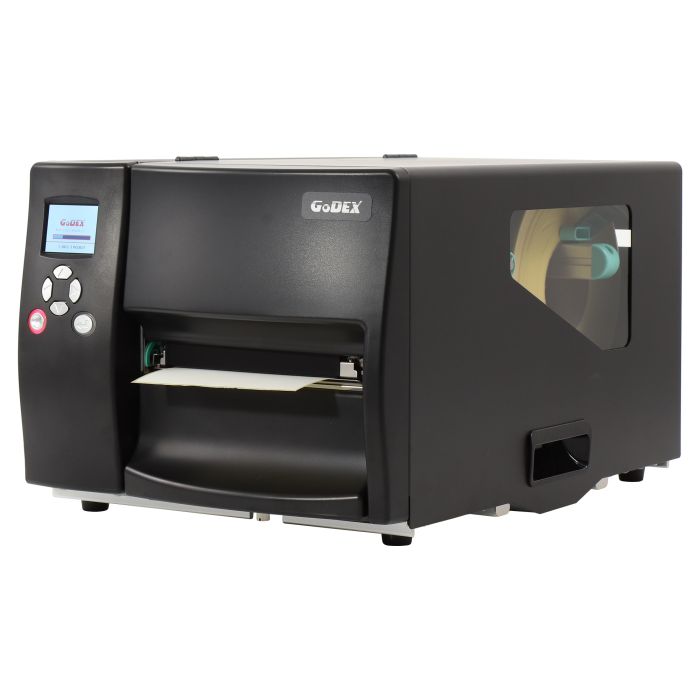

GoDEX printer EZ-6250i - tear-off edge

What are the key features of industrial label printer such as the EZ-6250i?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes.

Which printing methods does the printer GP-EZ-6250I-E support?

The printer EZ-6250i with item number GP-EZ-6250I-E supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 450 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 174 mm can be used.

Which roll labels are compatible with the label printer EZ-6250i?

All roll labels with a core diameter of 1.5 inch (38.1 mm), 3 inch (76.2 mm) and a maximum outer roll diameter of 203.2 mm are compatible with the label printer EZ-6250i. Labels with outside or inside wound are also suitable.

Which label formats can the EZ-6250i print?

The EZ-6250i can process roll labels from 50.8 mm to 178 mm in width. The maximum print width is 168 mm.

What print quality does the EZ-6250i offer?

The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.

Which interfaces does the industrial label printer EZ-6250i support?

The industrial label printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the printer EZ-6250i offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer EZ-6250i?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterwards, add the device in the Windows settings.
