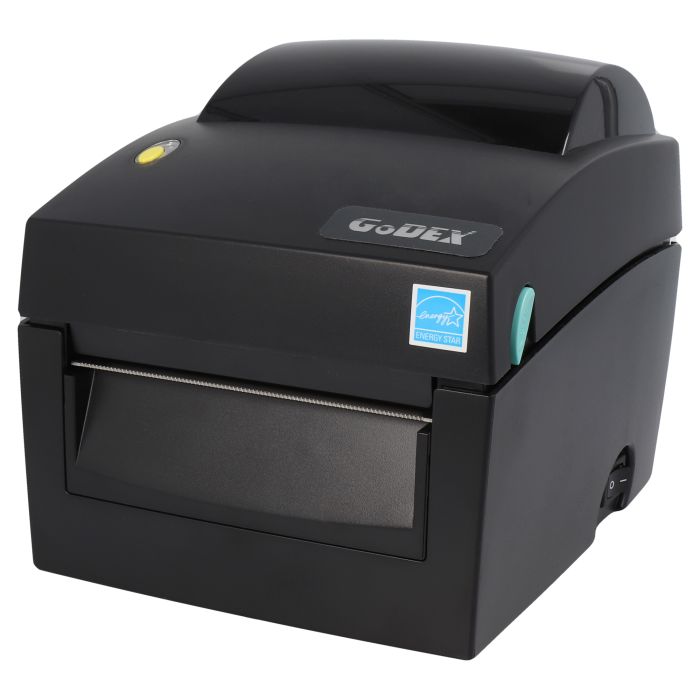

GoDEX printer DT4X - tear-off edge

What are the key features of desktop printer such as the DT4X?

Desktop printers are suitable for work environments with limited space. Thanks to their compact design, they can be easily integrated into shipping, warehouse, production, or office areas, even where there is little available surface space. Furthermore, they are characterized by ease of use, versatility, and cost-effectiveness.

Which printing methods does the printer GP-DT4X support?

The printer DT4X with item number GP-DT4X supports the direct thermal printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.

Which roll labels are compatible with the label printer DT4X?

All roll labels with a core diameter of 1 inch (25.4 mm), 1.5 inch (38.1 mm) and a maximum outer roll diameter of 127 mm are compatible with the label printer DT4X. Labels with outside or inside wound are also suitable.

Which label formats can the DT4X print?

The DT4X can process roll labels from 25.4 mm to 118 mm in width. The maximum print width is 108 mm.

What print quality does the DT4X offer?

The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.

Which interfaces does the desktop printer DT4X support?

The desktop printer supports the following interfaces: LAN, USB, serial (RS-232).

What features does the printer DT4X offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer DT4X?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterwards, add the device in the Windows settings.
