GoDEX printer DT2X - tear-off edge

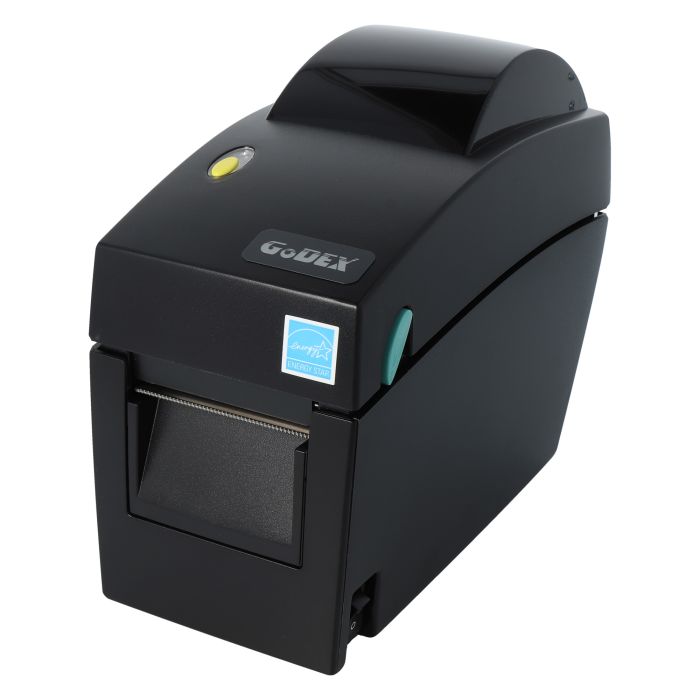

GoDEX DT2X, 203 dpi desktop printer, model with tear-off edge (GP-DT2X BLACK)
- printing method:
- direct thermal
- max. print width:
- 54 mm
- max. print speed:
- 177 mm/s
- interfaces:
- LAN, USB, serial (RS-232)
Details
What are the key features of desktop printer such as the DT2X?
Desktop printers are suitable for work environments with limited space. Thanks to their compact design, they can be easily integrated into shipping, warehouse, production, or office areas, even where there is little available surface space. Furthermore, they are characterized by ease of use, versatility, and cost-effectiveness.
Which printing methods does the printer GP-DT2X support?
The printer DT2X with item number GP-DT2X supports the direct thermal printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
Which roll labels are compatible with the label printer DT2X?
All roll labels with a core diameter of 1 inch (25.4 mm), 1.5 inch (38.1 mm) and a maximum outer roll diameter of 127 mm are compatible with the label printer DT2X. Labels with outside or inside wound are also suitable.
Which label formats can the DT2X print?
The DT2X can process roll labels from 15 mm to 60 mm in width. The maximum print width is 54 mm.
What print quality does the DT2X offer?
The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.
Which interfaces does the desktop printer DT2X support?
The desktop printer supports the following interfaces: LAN, USB, serial (RS-232).
What features does the printer DT2X offer?
The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.
How do I install the printer DT2X?
To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterwards, add the device in the Windows settings.
We recommend using this printer with Windows. Please note that we do not provide support for macOS.More Information
| manufacturer | GoDEX |
|---|---|
| model | DT2X |
| productdescription | desktop printer |
| type | model with tear-off edge |
| used device | nein |
| interfaces | serial (RS-232), LAN, USB |
| resolution (dpi) | 203 |
| outer diameter label roll (mm) | 127 |
| color | grauschwarz |
| roll width max. (mm) | 60 |
| roll width min. (mm) | 15 |
| printing method | direct thermal |
| use info | GoDEX printers are Windows certified |
| core diameter label roll | 1 Zoll (25,4 mm), 1,5 Zoll (38,1 mm) |
| label roll winding | Außen- oder Innenwicklung |
| printwidth max. (mm) | 54 |
| print speed max. (mm/s) | 177 |
| alignment | center alligned |
| scope of delivery | EU-Netzkabel, Kurzanleitung, Printer(s), power supply, USB connection cable, sample label roll, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4040329200596 |
