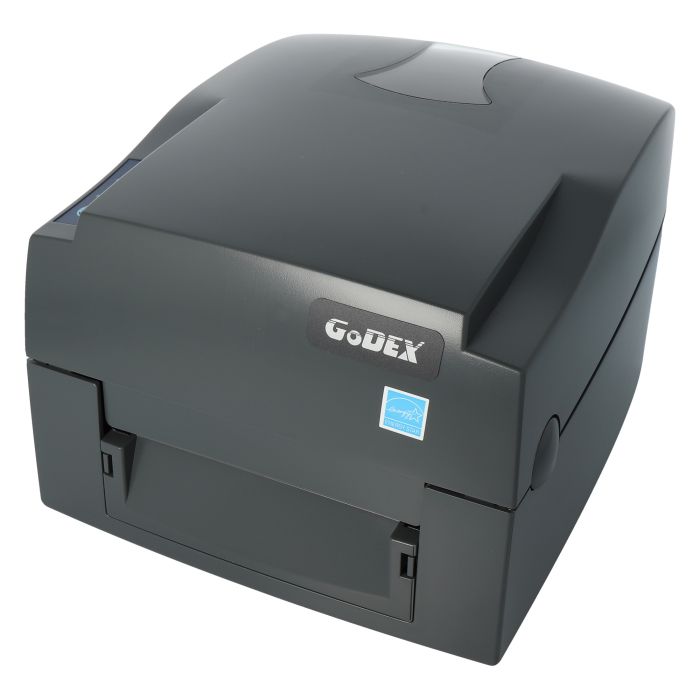

GoDEX printer G530+ - tear-off edge

What are the key features of desktop printer such as the G530+?

Desktop printers are suitable for work environments with limited space. Thanks to their compact design, they can be easily integrated into shipping, warehouse, production, or office areas, even where there is little available surface space. Furthermore, they are characterized by ease of use, versatility, and cost-effectiveness.

Which printing methods does the printer G530-PLUS support?

The printer G530+ with item number G530-PLUS supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and suitable for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the printed image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 300 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 110 mm can be used.

Which roll labels are compatible with the label printer G530+?

All roll labels with a core diameter of 1 Zoll (25,4 mm), 1,5 Zoll (38,1 mm), 3 Zoll (76,2 mm) and a maximum outer roll diameter of 127 mm are compatible with the label printer G530+. Labels with outside or inside wound are also suitable.

Which label formats can the G530+ print?

The G530+ can process roll labels from 25.4 mm to 118 mm in width. The maximum print width is 105.7 mm.

What print quality does the G530+ offer?

The printhead has a resolution of 300 dpi. This resolution is suitable for printing text, fine barcodes, or graphics. It is frequently used for product identification or nameplate labels.

Which interfaces does the desktop printer G530+ support?

The desktop printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the printer G530+ offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer G530+?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterwards, add the device in the Windows settings.
