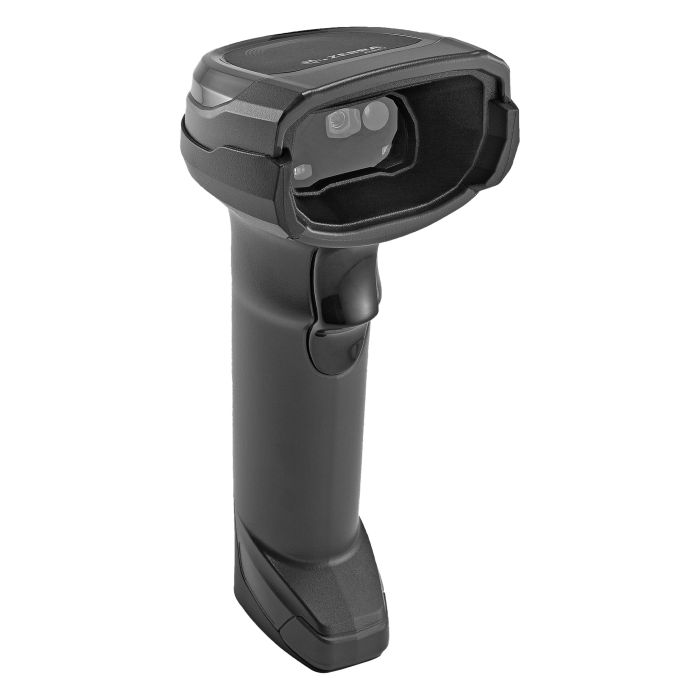

Zebra DS8178 barcodescanner

How can the barcode scanner be connected to the system?

The connection to the system is made via bluetooth. This makes the scanner mobile and suitable for workplaces where freedom of movement is required. In addition, the scanner can be connected to the system via the charging and transfer station.

What is included in the scope of delivery of the Zebra DS8178?

The Zebra DS8178 comes with: scanner.

Which barcodes can be scanned with the Zebra DS8178 scanner?

The Zebra DS8178 captures 1D/2D, Digimarc.

What does degree of protection IP52 mean?

The IP52 protection rating means that the barcode scanner is protected against dust deposits inside and against dripping water at an angle of up to 15°.

How far away from the base unit can the barcode scanner be used?

The scanner can be used up to 100 m away from the base unit.

What is the scanner's range when reading barcodes?

The scanner recognizes barcodes from a distance of up to 0.61 m.

Up to what height is the scanner drop-proof?

The scanner is designed to withstand drops from heights of up to 1.8 m onto concrete.

What is the battery capacity of the barcode scanner?

The battery capacity is 2500 mAh, enabling approximately 65000 scans per charge. The exact number depends on factors such as scanning frequency, activated additional functions (e.g., Bluetooth), and environmental conditions such as temperature.

How is a successful barcode scan indicated?

After the barcode is scanned, confirmation is provided visual, acoustic.

How can I set up my Zebra barcode scanner?

You can set up your barcode scanner on your PC using the Zebra 123scan-software. The Windows utility supports quick and easy configuration and offers the option to customize advanced settings such as interfaces, barcode fonts, or signal options.
