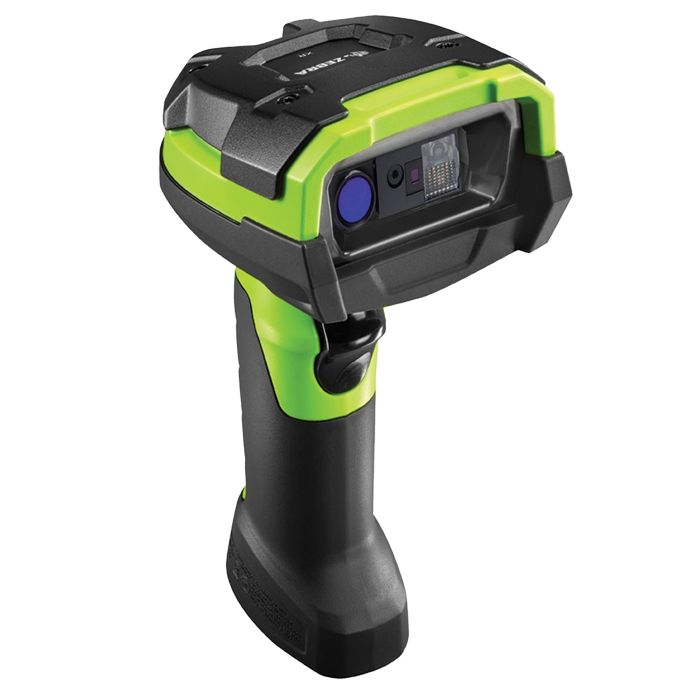

Zebra DS3608-XR barcodescanner

How can the barcode scanner be connected to the system?

The connection to the system is made via cable. This enables stable and reliable data transmission without radio interruptions and is suitable for use at stationary workstations.

Which interfaces does the Zebra DS3608-XR scanner support?

The Zebra DS3608-XR barcode scanner supports the following interfaces: Industrial Ethernet, KBW, USB, serial (RS-232).

What is included in the scope of delivery of the Zebra DS3608-XR?

The scope of delivery of the Zebra DS3608-XR includes: scanner.

Which barcodes can be scanned with the Zebra DS3608-XR scanner?

The Zebra DS3608-XR captures 1D/2D, Digimarc barcodes.

What does degree of protection IP65/IP68 mean?

The IP65 protection rating means that the barcode scanner is completely dustproof and offers protection against water jets from any angle. IP68 offers additional protection against permanent submersion (details according to manufacturer's specifications).

What is the scanner's range when reading barcodes?

The scanner recognizes barcodes from a distance of up to 32 m.

Up to what height is the scanner drop-proof?

The scanner is designed to withstand drops from up to 3 m onto concrete.

How is a successful barcode reading indicated?

After reading the barcode, confirmation is given visual, acoustic, vibrating.

How can I set up my Zebra barcode scanner?

You can set up your barcode scanner on your PC using the Zebra 123scan-software. The Windows utility supports quick and easy configuration and offers the option to customize advanced settings such as interfaces, barcode fonts, or signal options.
