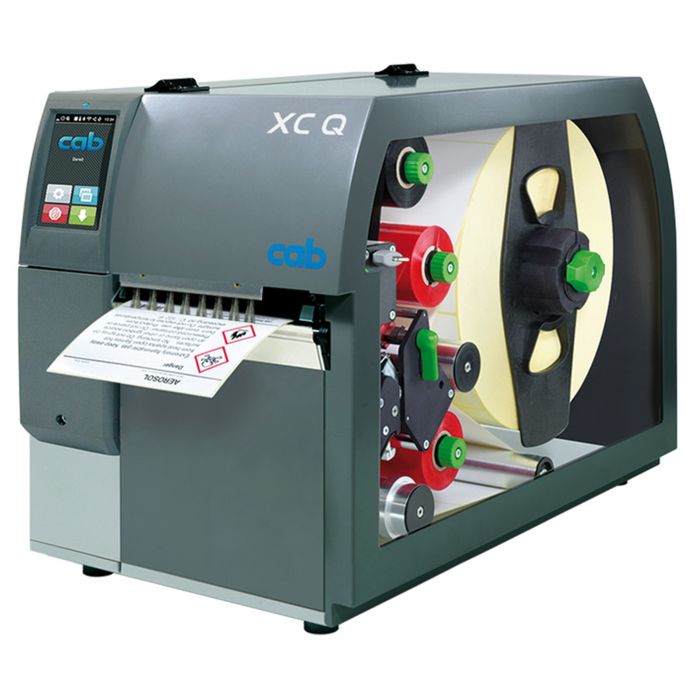

cab printer XC Q6.3 - tear-off edge

What distinguishes industrial label printer models such as the XC Q6.3?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes.

What is special about the 6011525 industrial printer?

The special feature of the 6011525 is its two-color thermal transfer printing in a single print process. For this purpose, the printer is equipped with two printheads arranged one behind the other, allowing labels to be printed simultaneously using two different ribbon colors. This makes it possible, for example, to create hazardous substance and GHS labels with black text and red pictograms on a single label.

Which printing methods does the 6011525 printer support?

The XC Q6.3 printer with item number 6011525 supports the thermal transfer printing method.
The thermal transfer printing process produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This process requires a ribbon. When the printhead is heated, the ink is transferred from the ribbon to the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 450 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 170 mm can be used.

Which roll labels fit the XC Q6.3 label printer?

All roll labels with a core diameter of 3 inch (76.2 mm) and a maximum outer roll diameter of 300 mm are compatible with the XC Q6.3 label printer. Labels with outside or inside wound are suitable.

What formats can the XC Q6.3 print?

The XC Q6.3 can process roll labels from 50 mm up to 180 mm in width. The maximum print width is 162.6 mm.

What is the print quality of the XC Q6.3?

The printhead has a resolution of 300 dpi. This resolution is suitable for printing text, fine barcodes, or graphics. It is frequently used for product identification or nameplate labels.

Which interfaces does the industrial label printer XC Q6.3 support?

The industrial label printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the XC Q6.3 printer offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the XC Q6.3 printer?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until after the driver has been installed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
