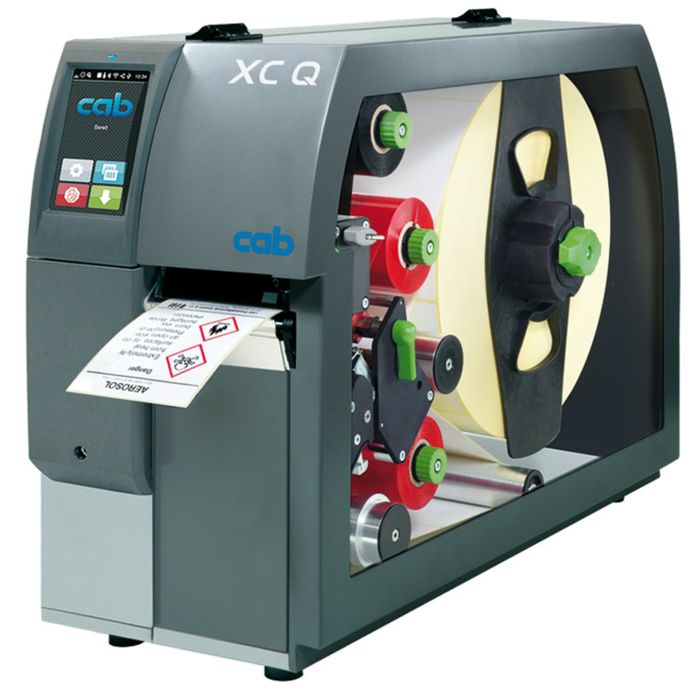

cab printer XC Q4 - tear-off edge

What distinguishes industrial label printers such as the XC Q4?

Industrial printers are ideal for applications with high print volumes and continuous operation. They are designed for demanding environments such as production facilities, warehouses, and logistics centers and can withstand intensive use. The ability to process large label rolls enables long print runs with fewer roll changes.

What is special about the 6011520 industrial printer?

The special feature of the 6011520 is its two-color thermal transfer printing in a single print process. For this purpose, the printer is equipped with two printheads arranged one behind the other, allowing labels to be printed simultaneously using two different ribbon colors. This makes it possible, for example, to create hazardous substance and GHS labels with black text and red pictograms on a single label.

Which printing methods does the 6011520 printer support?

The XC Q4 printer with item number 6011520 supports the thermal transfer printing process.
The thermal transfer printing process produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This process requires a ribbon. When the printhead is heated, the ink is transferred from the ribbon to the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 450 m, a core diameter of 1 inch (25.4 mm), and a maximum ribbon width of 114 mm can be used.

Which roll labels fit the XC Q4 label printer?

All roll labels with a core diameter of 3 inches (76.2 mm) and a maximum outer roll diameter of 300 mm are compatible with the XC Q4 label printer. Labels with either outside or inside winding are suitable.

What formats can the XC Q4 print?

The XC Q4 can process roll labels from 24 mm up to 120 mm wide. The maximum print width is 105.7 mm.

What is the print quality of the XC Q4?

The printhead has a resolution of 300 dpi. This resolution is suitable for printing text, fine barcodes, or graphics. It is commonly used for product labels and nameplate labels.

Which interfaces does the XC Q4 industrial label printer support?

The industrial label printer supports the following interfaces: LAN, USB, USB Host, serial (RS-232).

What features does the XC Q4 printer offer?

The base unit is equipped with an integrated tear bar. After printing, the labels can be manually separated from the liner using the serrated tear bar.

How do I install the XC Q4 printer?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until after the driver has been installed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
