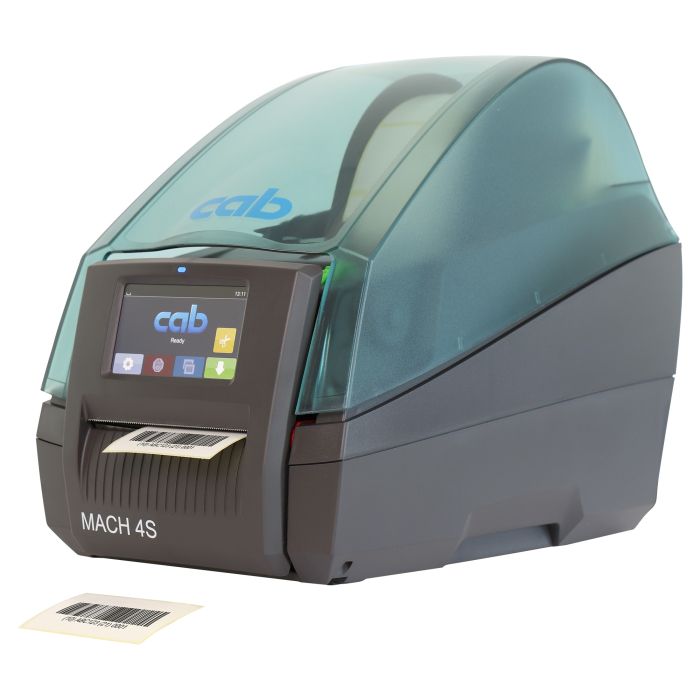

cab printer MACH4.3S - cutter

What are the key features of industrial label printer such as the MACH4.3S?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes.

Which printing methods does the printer 5984638 support?

The printer MACH4.3S with item number 5984638 supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and ideal for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the print image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 360 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 114 mm can be used.

Which roll labels are compatible with the label printer MACH4.3S?

All roll labels with a core diameter of 1.5 inch (38.1 mm), 3 inch (76.2 mm) and a maximum outer roll diameter of 205 mm are compatible with the label printer MACH4.3S. Any labels with outside or inside wound are suitable.

Which label formats can the MACH4.3S print?

The MACH4.3S can process roll labels with widths ranging from 9 mm to 120 mm. The maximum print width is 104 mm.

What print quality does the MACH4.3S offer?

The printhead has a resolution of 203 dpi. This resolution is suitable for printing simple text, barcodes, and graphics. It is frequently used for shipping labels, warehouse markings, and shelf labels.

Which interfaces does the industrial label printer MACH4.3S support?

The industrial label printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the printer MACH4.3S offer?

The base unit is equipped with a cutter. The labels are automatically cut off after printing.

How do I install the printer MACH4.3S?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
