SKU
5978202

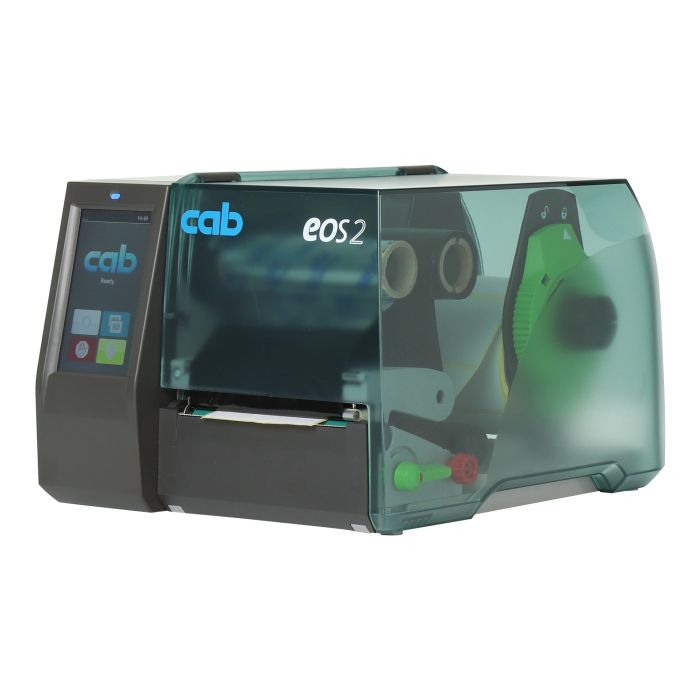

cab printer EOS2 - tear-off edge
cab EOS2, 300 dpi industrial label printer, tear-off edge (5978202)
- printing method:
- direct thermal, thermal transfer
- max. print width:
- 105.7 mm
- max. print speed:
- 150 mm/s
- interfaces:
- LAN, USB, serial (RS-232)
Advantages of cab EOS2:
- Label printer in compact design
- Up to 20% faster printing processes
- Improved user-friendliness due to intuitive touch screen
- Stand alone operation without PC connection possible
- Automatic centering of inserted label rolls
Cab EOS2 - the further development of the EOS1 printer
With the optimized successor of the well-known cab EOS1 desktop printer you increase the speed of internal printing processes by up to 20%! The powerful model has been equipped with a 800 MHz processor which allows printing speeds of up to 150 mm/s. A print light sensor and a reflex sensor ensure the recognition of almost any label material. The storage capacity has also been significantly increased compared to its predecessor EOS 1: 50 MB IFFS data memory and 256 MB RAM memory allow quick access to label layouts and configurations. The performance spectrum of the cab EOS 2 printers is completed by a multitude of modern interfaces, which guarantee a flexible working all along the line.
| manufacturer | cab |
|---|---|
| model | EOS2 |
| productdescription | Etikettendrucker (Industrie) |
| type | model with tear-off edge |
| used device | nein |
| interfaces | serial (RS-232), LAN, USB |
| resolution (dpi) | 300 |
| outer diameter label roll (mm) | 152 |
| roll width max. (mm) | 120 |
| roll width min. (mm) | 25 |
| printing method | direct thermal, thermal transfer |
| use info | stand-alone printer |
| core diameter label roll | 1,5 inch (38,1 mm) - 3 inches (76,2 mm) |
| label winding | outside wound |
| ribbon winding | Außenwicklung |
| ribbon length max. (m) | 360 |
| ribbon width max. (mm) | 114 |
| printwidth max. (mm) | 105,7 |
| print speed max. (mm/s) | 150 |
| alignment | center alligned |
| scope of delivery | Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4059312106470 |
| manufacturer contact data |
CAB Produkttechnik GmbH & Co. KG Wilhelm- Schickard- Str. 14 76131 Karlsruhe Germany info@cab.de |
|---|---|
| safety instructions |
|
In stock
