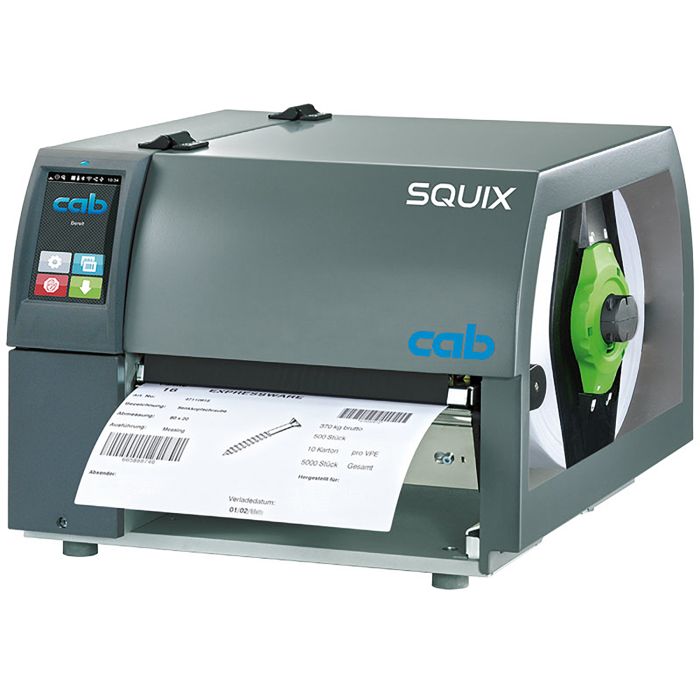

cab printer SQUIX 8.3 - tear-off edge

What are the key features of industrial label printer such as the SQUIX 8.3?

Industrial printers are suitable for high-volume printing applications and continuous operation. Designed for demanding environments such as production halls and warehouse or logistics centers, they withstand heavy-duty use. The ability to handle large label rolls enables long print runs with minimal roll changes.

Which printing methods does the printer 5977067 support?

The printer SQUIX 8.3 with item number 5977067 supports the direct thermal and thermal transfer printing method.
The direct thermal printing method is fast, cost-effective, and ideal for high print volumes. The printhead selectively heats specific areas of the label material. The heat-sensitive coating turns black in the heated areas, creating the print image. This remains clearly legible throughout transportation and logistics processes.
The thermal transfer printing method produces durable, smudge-resistant, and scratch-resistant print images and is therefore suitable for applications with high durability requirements. This method requires a ribbon. Heat from the printhead transfers the ink from the ribbon onto the label material.

Which thermal transfer ribbons can be used?

All thermal transfer ribbons with a maximum ribbon length of 360 m, a core diameter of 1 inch (25.4 mm) and a maximum ribbon width of 220 mm can be used.

Which roll labels are compatible with the label printer SQUIX 8.3?

All roll labels with a core diameter of 1.5 inch (38.1 mm), 3 inch (76.2 mm) and a maximum outer roll diameter of 205 mm are compatible with the label printer SQUIX 8.3. Any labels with outside or inside wound are suitable.

Which label formats can the SQUIX 8.3 print?

The SQUIX 8.3 can process roll labels with widths ranging from 50 mm to 235 mm. The maximum print width is 216 mm.

What print quality does the SQUIX 8.3 offer?

The printhead has a resolution of 300 dpi. This resolution is suitable for printing text, fine barcodes, or graphics. It is frequently used for product identification or nameplate labels.

Which interfaces does the industrial label printer SQUIX 8.3 support?

The industrial label printer supports the following interfaces: LAN, USB, USB-Host, serial (RS-232).

What features does the printer SQUIX 8.3 offer?

The basic unit features an integrated tear-off edge. After printing, the labels and the backing material can be manually torn off against the serrated tear-off edge.

How do I install the printer SQUIX 8.3?

To set up the printer, first download the Windows printer driver provided in the "Downloads" tab and install it on your PC. Do not connect the device until the driver installation has been completed. Then connect it to your PC via USB. Afterward, add the device in the Windows settings.
