Reliable printing due to built-in high-speed processor
High user-friendliness thanks to intuitive touch display
Permanent sensor monitoring of the ribbon consumption
Standard WLAN function
More Information
More Information
manufacturer
cab
model

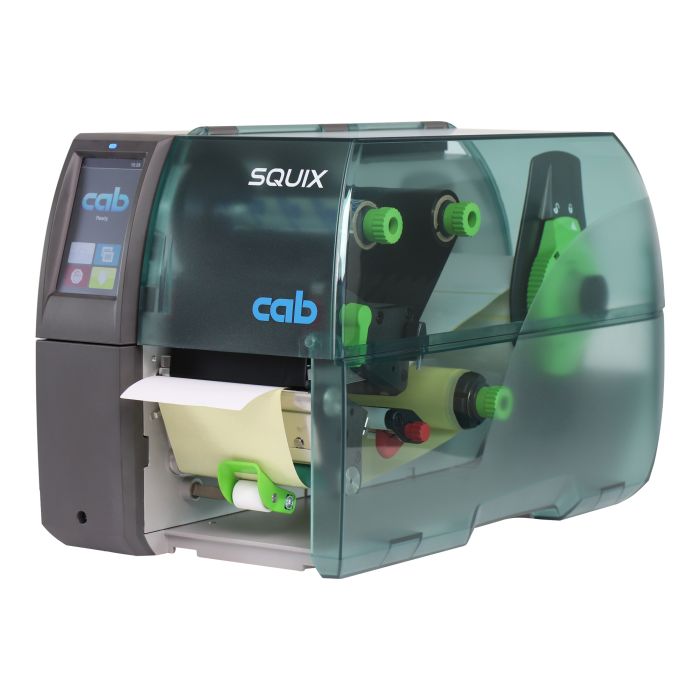

SQUIX 4.3 MP
productdescription
Etikettendrucker (Industrie)
type
model with dispenser, liner rewinder
display
LCD touch-screen
used device
nein
interfaces
serial (RS-232), LAN, USB, USB-Host, WLAN
resolution (dpi)
203
outer diameter label roll (mm)
205
roll width max. (mm)
114
roll width min. (mm)
9
printing method
direct thermal, thermal transfer
use info
stand-alone printer
core diameter label roll
1,5 inch (38,1 mm) - 3 inches (76,2 mm)
label winding
outside - inside wound
ribbon length max. (m)
600
ribbon width max. (mm)
114
printwidth max. (mm)
104
print speed max. (mm/s)
300
alignment
center alligned
scope of delivery
Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software
operating system
We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS.
GTIN
4059312070917
Download
Download
Instruction Label Software
pdf
4.4MB
Printer Datasheet
pdf
7MB
Replacement Parts List
pdf
1.7MB
User Manual
pdf
7MB
NiceLabel Driver
zip
28.2MB
Service Manual
pdf
2.3MB
Windows Printer Driver
zip
23.9MB
Configuration Guide
pdf
1.6MB
Product safety
Product safety
manufacturer contact data
CAB Produkttechnik GmbH & Co. KG Wilhelm- Schickard- Str. 14 76131 Karlsruhe Germany info@cab.de
safety instructions
Other improper work or modifications to the appliance can also jeopardize operational safety
The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.).
The device is designed for power grids with an alternating voltage of 100 V to 240 V. It may only be connected to sockets with protective earth contact
Only connect the appliance to devices that carry a safety extra-low voltage
The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling
The maximum emission sound pressure level LpA is below 70 dB(A)
Do not operate the appliance in the vicinity of high-voltage power lines.
Do not operate the appliance in a potentially explosive atmosphere.
Do not remove any warning stickers, otherwise dangers cannot be recognized
Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians
Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid
Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work
Improper tampering with electronic assemblies and their software can cause faults
Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections
If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts
