SKU
5977011

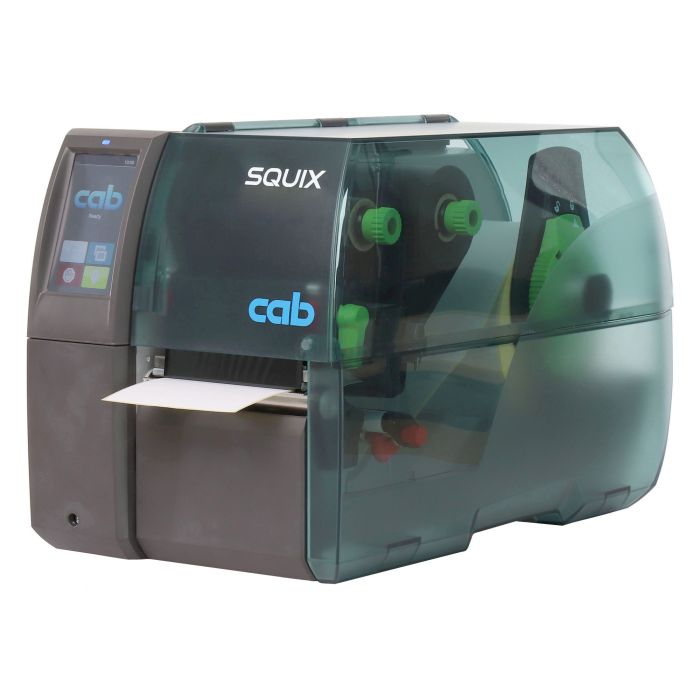

cab printer SQUIX 4M, center alligned, 600 dpi

cab 5977011 | cab SQUIX 4M printer buy here

SKU
5977011
cab printer SQUIX 4M, center alligned, 600 dpi

cab SQUIX 4M, 600 dpi label printers (industrial), LCD color touchscreen, tear-off edge (5977011)

printing method:
thermal transfer
max. print width:
105.7 mm
max. print speed:
150 mm/s
interfaces:
LAN, USB, USB-Host, WLAN, serial (RS-232)

Advantages of cab SQUIX4:

  • Optimized housing for reliable dirt repellents
  • High user-friendliness due to intuitive touch display
  • Permanent sensor monitoring of the ribbon consumption
  • Standard WLAN function


User-friendliness as a new standard – the cab SQUIX 4

The SQUIX 4 is the further developed successor of the cab A4+ series and offers you familiar reliability with new technology and a new level of user-friendliness. The SQUIX 4 prints for you with 600 dpi print resolution and is therefore suitable for printing small fonts, high-resolution and fine graphics and small barcodes.

The highlights of the SQUIX 4 are the intuitive menu structure and the 4.3 LCD touch display, which makes the printer easy to set up and operate. Optimized firmware, a powerful processor and a robust housing make the SQUIX 4 the optimal solution for label printing in industrial environments and equip the model against shocks, dirt and other demanding conditions.

The center material guide also enables the printing of very small formats and facilitates the identification of the loaded label material.

More Information
manufacturer cab
model SQUIX 4M
productdescription label printers (industrial)
type model with tear-off edge
display LCD touch-screen
interfaces serial (RS-232), LAN, USB, USB-Host, WLAN
resolution (dpi) 600
outer diameter label roll (mm) 205
outer roll diameter (mm) 120
roll width min. (mm) 9
printing method thermal transfer
use info stand-alone printer
core diameter label roll 3 Zoll / 76,2 mm
label winding outside wound
ribbon winding Außenwicklung
ribbon max. lenght (m) 450
ribbon width max. (mm) 114
printwidth (mm) 105,7
max. print speed (mm/s) 150
alignment center alligned
scope of delivery Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software
operating system Wir empfehlen diesen Drucker zur Nutzung mit Windows, eine Nutzung mit MacOS wird von uns nicht empfohlen und auch nicht supportet.
GTIN 4059312052036
Download
Instruction Label Software pdf 4.4MB
Printer Datasheet pdf 6.1MB
Replacement Parts List pdf 1.7MB
User Manual pdf 3.3MB
NiceLabel Driver zip 28.2MB
Service Manual pdf 2.3MB
Windows Printer Driver zip 9.4MB
In stock
Available immediately from stock
All prices excl. Tax
- +
€2,155.50
