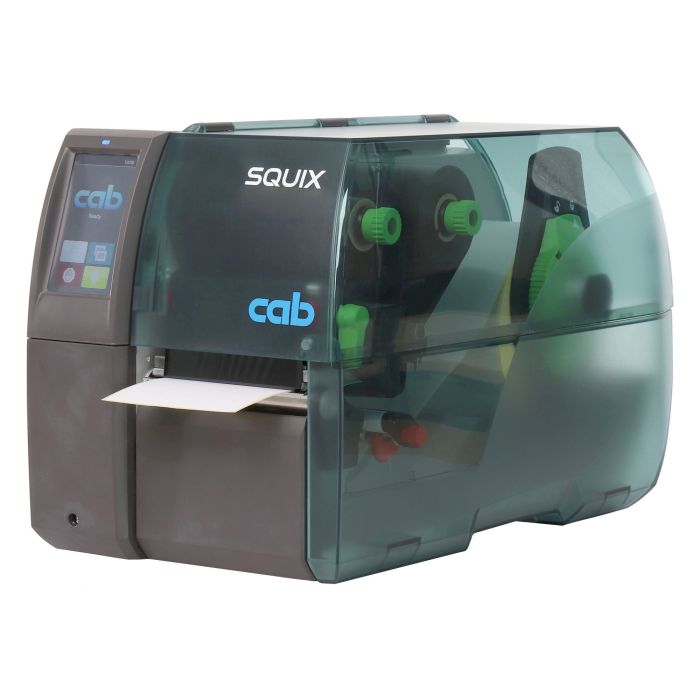

cab printer SQUIX 4M, center alligned - tear-off edge
cab SQUIX 4M, 300 dpi label printers (industrial), LCD color touchscreen, tear-off edge (5977010)
SKU
5977010
- printing method:
- direct thermal, thermal transfer
- max. print width:
- 105.7 mm
- max. print speed:
- 300 mm/s
- interfaces:
- LAN, USB, USB-Host, WLAN, serial (RS-232)
In stock
Details
Advantages of cab SQUIX4:
- Optimized housing for reliable dirt repellents
- High user-friendliness due to intuitive touch display
- Permanent sensor monitoring of the ribbon consumption
- Standard WLAN function
User-friendliness as a new standard – the cab SQUIX 4
The SQUIX 4 is the further developed successor of the cab A4+ series and offers you familiar reliability with new technology and a new level of user-friendliness. The SQUIX 4 prints for you with 300 dpi print resolution and is therefore suitable for printing small texts, high-resolution graphics and barcodes .
The highlights of the SQUIX 4 are the intuitive menu structure and the 4.3 LCD touch display, which makes the printer easy to set up and operate. Optimized firmware, a powerful processor and a robust housing make the SQUIX 4 the optimal solution for label printing in industrial environments and equip the model against shocks, dirt and other demanding conditions.
The center material guide also enables the printing of very small formats and facilitates the identification of the loaded label material.More Information
| manufacturer | cab |
|---|---|
| model | SQUIX 4 M |
| productdescription | Etikettendrucker (Industrie) |
| type | model with tear-off edge |
| display | LCD touch-screen |
| used device | nein |
| interfaces | serial (RS-232), LAN, USB, USB-Host, WLAN |
| resolution (dpi) | 300 |
| outer diameter label roll (mm) | 205 |
| roll width max. (mm) | 114 |
| roll width min. (mm) | 9 |
| printing method | direct thermal, thermal transfer |
| use info | stand-alone printer |
| core diameter label roll | 1,5 inch (38,1 mm) - 3 inches (76,2 mm) |
| label roll winding | Außen- oder Innenwicklung |
| ribbon winding | Außen- oder Innenwicklung |
| ribbon length max. (m) | 600 |
| ribbon width max. (mm) | 114 |
| printwidth max. (mm) | 105,7 |
| print speed max. (mm/s) | 300 |
| alignment | center alligned |
| scope of delivery | Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4059312051992 |
