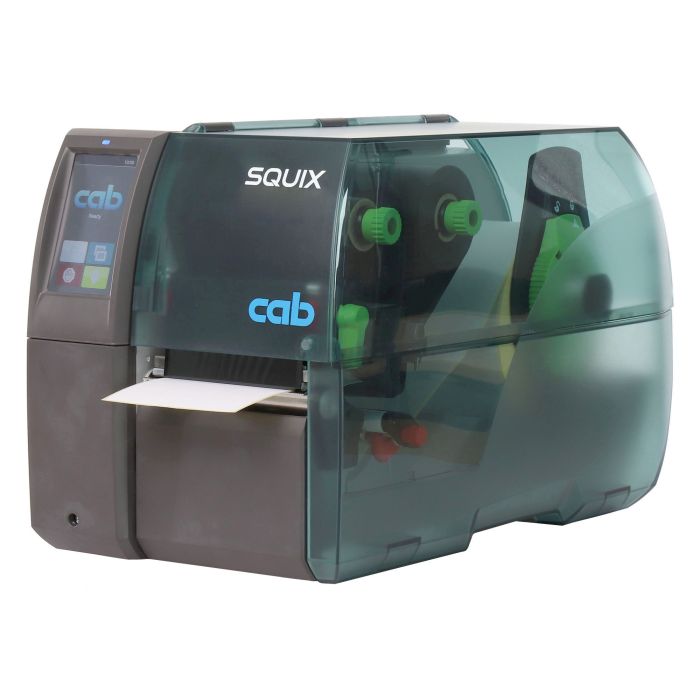

  • cab SQUIX 4, 600 dpi label printers (industrial), LCD color touchscreen, tear-off edge (5977002)
main product photo
SKU
5977002

cab printer SQUIX 4 - tear-off edge

cab SQUIX 4, 600 dpi label printers (industrial), LCD color touchscreen, tear-off edge (5977002)
printing method:
thermal transfer
max. print width:
105.7 mm
max. print speed:
150 mm/s
interfaces:
LAN, USB, USB-Host, WLAN, serial (RS-232)
More product details
More product details
In stock
Available immediately from stock
All prices excl. Tax
Shipping costs information
- +
€2,083.50

Advantages of cab SQUIX4:

  • Optimized housing for reliable dirt repellents
  • High user-friendliness due to intuitive touch display
  • Permanent sensor monitoring of the ribbon consumption
  • Standard WLAN function


User-friendliness as a new standard – the cab SQUIX 4

The SQUIX 4 is the further developed successor of the cab A4+ series and offers you familiar reliability with new technology and a new level of user-friendliness. The SQUIX 4 prints for you with 600 dpi print resolution and is therefore suitable for printing small fonts, high-resolution and fine graphics and small barcodes.

The highlights of the SQUIX 4 are the intuitive menu structure and the 4.3 LCD touch display, which makes the printer easy to set up and operate. Optimized firmware, a powerful processor and a robust housing make the SQUIX 4 the optimal solution for label printing in industrial environments and equip the model against shocks, dirt and other demanding conditions.

More Information
manufacturer cab
model SQUIX 4
productdescription Etikettendrucker (Industrie)
type model with tear-off edge
display LCD touch-screen
used device nein
interfaces serial (RS-232), LAN, USB, USB-Host, WLAN
resolution (dpi) 600
outer diameter label roll (mm) 205
roll width max. (mm) 120
roll width min. (mm) 24
printing method thermal transfer
use info stand-alone printer
core diameter label roll 1,5 inch (38,1 mm) - 3 inches (76,2 mm)
label winding outside - inside wound
ribbon length max. (m) 600
ribbon width max. (mm) 114
printwidth max. (mm) 105,7
print speed max. (mm/s) 150
scope of delivery Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software
operating system We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS.
GTIN 4059312052029
Download
Instruction Label Software pdf 4.4MB
Printer Datasheet pdf 7MB
Replacement Parts List pdf 1.7MB
User Manual pdf 7MB
NiceLabel Driver zip 28.2MB
Service Manual pdf 2.3MB
Windows Printer Driver zip 23.9MB
Configuration Guide pdf 1.6MB
Product safety
manufacturer contact data CAB Produkttechnik GmbH & Co. KG
Wilhelm- Schickard- Str. 14
76131 Karlsruhe
Germany
info@cab.de
safety instructions
  • Other improper work or modifications to the appliance can also jeopardize operational safety
  • The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.).
  • The device is designed for power grids with an alternating voltage of 100 V to 240 V. It may only be connected to sockets with protective earth contact
  • Only connect the appliance to devices that carry a safety extra-low voltage
  • The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling
  • The maximum emission sound pressure level LpA is below 70 dB(A)
  • Do not operate the appliance in the vicinity of high-voltage power lines.
  • Do not operate the appliance in a potentially explosive atmosphere.
  • Do not remove any warning stickers, otherwise dangers cannot be recognized
  • Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians
  • Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid
  • Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work
  • Improper tampering with electronic assemblies and their software can cause faults
  • Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections
  • If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts
