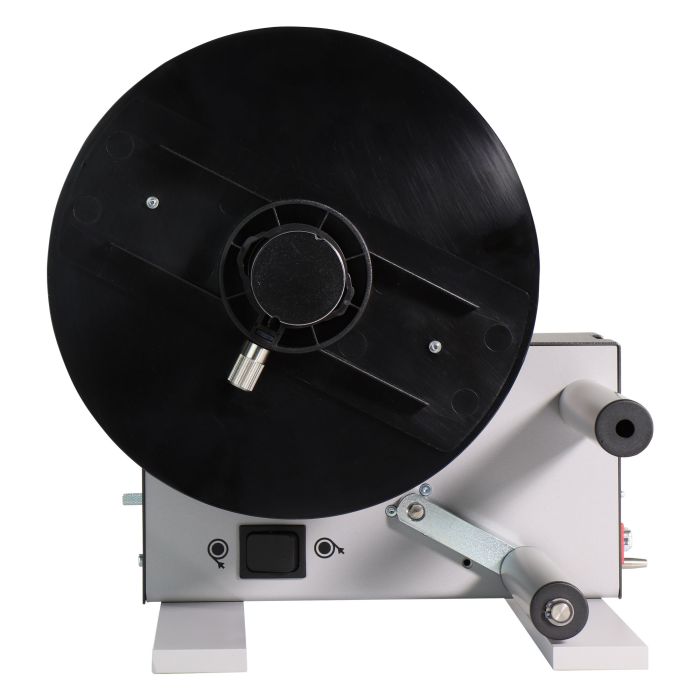

For direct printer connection - It is screwed to the transfer printer. Label winding either inside or outside. The electronic control via the pendulum arm ensures even, taut winding.
With built-in power supply - The rewinder can also be used with any third-party printer.
| External Rewinder | ER1 | ER2 | ER3 | ER4 | ER4 | ER6 | ER8 |
| Max. roll Ø (mm) | 210 | 210 | 210 | 210 | 300 | 300 | 300 |
| Application | all A+ devices | all A+ devices and third-party devices | |||||
| Connection | for direct printer connection | with integrated power supply unit | |||||
| Material width up to (mm) | 120 | 180 | 235 | 120 | 120 | 180 | 235 |
| Operating voltage | 24 VDC | 100 - 240 V~ 50/60 Hz | |||||
| Core Ø (mm) | 40 on winding axis, 40 on paperboard core, 76,2 on core via adapter |
||||||
| Label winding | outside or inside | ||||||
| manufacturer | cab |
|---|---|
| productdescription | external rewinder |
| outer diameter label roll (mm) | 210 |
| outer roll diameter (mm) | 120 |
| roll weight max | 5 |
| label winding | outside - inside wound |
| GTIN | 4251322368033 |
In stock
For direct printer connection - It is screwed to the transfer printer. Label winding either inside or outside. The electronic control via the pendulum arm ensures even, taut winding.
With built-in power supply - The rewinder can also be used with any third-party printer.
| External Rewinder | ER1 | ER2 | ER3 | ER4 | ER4 | ER6 | ER8 |
| Max. roll Ø (mm) | 210 | 210 | 210 | 210 | 300 | 300 | 300 |
| Application | all A+ devices | all A+ devices and third-party devices | |||||
| Connection | for direct printer connection | with integrated power supply unit | |||||
| Material width up to (mm) | 120 | 180 | 235 | 120 | 120 | 180 | 235 |
| Operating voltage | 24 VDC | 100 - 240 V~ 50/60 Hz | |||||
| Core Ø (mm) | 40 on winding axis, 40 on paperboard core, 76,2 on core via adapter |
||||||
| Label winding | outside or inside | ||||||
| manufacturer | cab |
|---|---|
| productdescription | external rewinder |
| outer diameter label roll (mm) | 210 |
| outer roll diameter (mm) | 120 |
| roll weight max | 5 |
| label winding | outside - inside wound |
| GTIN | 4251322368033 |
