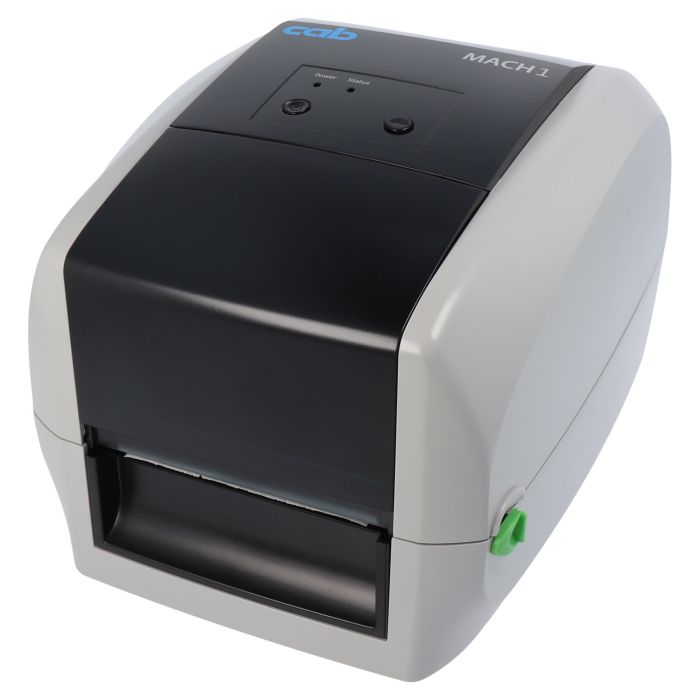

Inexpensive printer for small to medium print volumes
Compact casing with stable double wall construction
More Information
More Information
manufacturer
cab
model
MACH1
productdescription
desktop printer
type
model with tear-off edge
used device
nein
interfaces
serial (RS-232), LAN, USB
resolution (dpi)
300
outer diameter label roll (mm)
127
roll width max. (mm)
120
roll width min. (mm)
25
printing method
direct thermal, thermal transfer
core diameter label roll
1 inch (25.4 mm)
label winding
outside wound
ribbon winding
Außenwicklung
ribbon length max. (m)
360
ribbon width max. (mm)
114
printwidth max. (mm)
105,7
print speed max. (mm/s)
102
scope of delivery
Printer(s), power supply, EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software
operating system
We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS.
GTIN
4059312015734
Download
Download
Instruction Label Software
pdf
4.4MB
Printer Datasheet
pdf
502KB
NiceLabel Driver
zip
28.2MB
Windows Printer Driver
zip
23.9MB
Product safety
Product safety
manufacturer contact data
CAB Produkttechnik GmbH & Co. KG Wilhelm- Schickard- Str. 14 76131 Karlsruhe Germany info@cab.de
safety instructions
Other improper work or modifications to the appliance can also jeopardize operational safety
The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.).
The device is designed for power grids with an alternating voltage of 100 V to 240 V. It may only be connected to sockets with protective earth contact
Only connect the appliance to devices that carry a safety extra-low voltage
The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling
The maximum emission sound pressure level LpA is below 70 dB(A)
Do not operate the appliance in the vicinity of high-voltage power lines.
Do not operate the appliance in a potentially explosive atmosphere.
Do not remove any warning stickers, otherwise dangers cannot be recognized
Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians
Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid
Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work
Improper tampering with electronic assemblies and their software can cause faults
Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections
If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts
